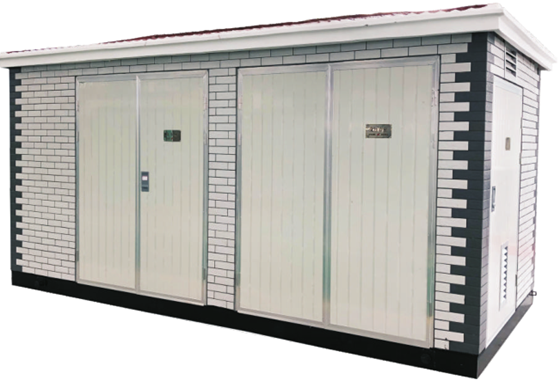

The ZBW series high-voltage/low-voltage prefabricated substation is a factory-prefabricated complete set of power distribution equipment that combines high-voltage power distribution equipment, transformers, and low-voltage power distribution equipment according to a certain wiring scheme. It is used for rated voltage 12/0.4kV. In the phase AC system, as a complete substation for receiving and distributing electric energy. The equipment has complete high and low voltage protection, safe and reliable operation, small footprint, short cycle time, convenient movement and simple maintenance; flexible wiring methods; green insulation and high dark level.



This product has mechanical and electrical interlocking function, meets the "five prevention" requirements, and has complete monitoring, alarm and protection means. The transformer room is equipped with a track and a transformer trolley, and is equipped with two doors. The inner door adopts a mesh opening type, which not only facilitates the installation and replacement of the transformer, but also ensures the personal safety of the inspectors.



This product has a good ventilation and heat dissipation system, which is composed of several natural ventilation channels and automatic switching fans (forced ventilation), and has a novel thermal insulation layer to ensure that the product can operate normally under high pressure and high gums.
